Product Show
|
|
|
|
|
Detail Info |

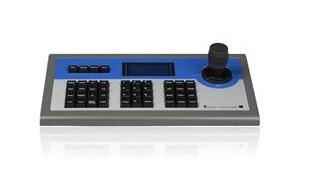

Key Features
£¦#8226; Incorporate all DVR front panel functions
£¦#8226; Control DVR and PTZ separately
£¦#8226; Support DVR and keyboard cascading
£¦#8226; 2D joystick
| Control mode |
| Control mode: |
RS-485 half-duplex mode Baud rate: 1200 ~ 19200bps | |
| External interface |
| Communication interface: |
1 RS-485 port | |
| General |
| LCD screen: |
122mm¡Á32mm |
| Joystick: |
2-axis |
| Maximum cable length: |
1200m |
| Power supply: |
12VDC |
| Working temperature: |
-10¡ãC ~ +55¡ãC |
| Working humidity: |
10%~90% |
| Size: |
300mm¡Á180mm¡Á 86mm |
| Weight: |
3.2Kg | | |
|
|
