Packaging Detail:	4ipnet WHG515 x 1 CD-ROM x 1 Quick Installation Guide (QIG) x 1 RS-232 DB9 to RJ-45Console Cable x 1 Crossover Ethernet Cable x 1 Straight-through Ethernet Cable x 1 Power Cord x 1 Rack Mounting Bracket (with Screws) x 1
Delivery Detail:	3 days after receipt of T/T

Specifications

Feature-rich network access controller, 10,000 local and 10,000 on-demand accounts and capable of managing up to 250 access poin

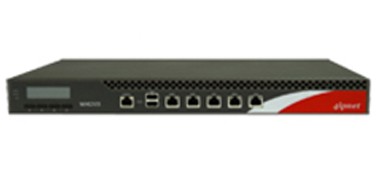

The 4ipnet WHG515 Secure WLAN Controller in Gigabit Ethernet with built-in 10,000 local accounts, 10,000 on-demand accounts, is an ideal security solution for medium-to-large scale WLAN deployments, including enterprises, campuses, hotels, airport terminals, and MDUs/ MTUs. The WHG515 integrates “secure access control”, “visitor account provisioning”, “flexible accounting and billing”, and “centralized WLAN management” into one box to provide simplified manageability and instant mobility. With more powerful hardware, WHG515 is capable of centrally managing 250 Layer 2/Layer 3 4ipnet access points to cover a wider service area in a medium-to-large network.

Secure Business Networking

WHG515 is suitable for business in managing their wired and wireless network access uniformly. The network access of users from different departments and the access of guests can be segregated in different Service Zones. When needed, WHG515’s Local, Site-to-Site and Remote VPN tunnels can be used to further secure the information flows for business. Mobile workers on the road or home-based teleworkers can securely access the office network through remote VPN tunnels.

College Dormitories, Apartments or Hotels Networking

For college dormitories, apartments or hotels who want to cater for their tenants’ Internet access needs, WHG515 makes it easy to manage new tenant registrations and share bandwidth equally among tenants. Also, it is convenient to set up WHG515 to offer wireless Internet service at medium-to-large events, such as conventions, trade shows, and student spring break gatherings.

Secure corporate network over the Internet

With WHG515, businesses can easily bridge multiple offices under a centrally managed single internal network. VPN solutions from other service providers are no longer necessary, WHG515 with EAP-series AP can service distributed network locations as if under the same internal network via secure tunneling technology.

Hotel with Property Management System (PMS)

For hotels using Property Management System (PMS) such as Micros Fidelio/Opera, WHG515 even enables Internet access charges to be incorporated into the room bill. Moreover, customers are able to purchase Internet service in room anytime or at the front counter. With a single account, a hotel guest can log on the Internet in room through a wired Ethernet port or enjoy wireless access throughout the hotel property. Before the account expires or the quota purchased reaches its limit, the guest who wants to surf the Internet in his/her room does not need to retype the password. WHG515 stands for the most cost-effective and easy-to-setup Internet Access Controller for hotels. Not only can WHG515 manage and bill both wireless and in-room wired Internet services for properties that have adopted modern IP network infrastructure, but it works for those who only utilize traditional phone lines coupled with DSLAM and DSL modem equipments to deliver Internet to each room.

Telcos or Large Hotspot Operators Networking

For Telcos or large hotspot operators, WHG515 brings in a convenient and economical way to deploy distributed hotspot services. While most of the operators prefer to use external RADIUS servers as authentication database, WHG515 in this architecture can play the role of a central RADIUS-NAS. For quick deployment, WHG515 supports two authentication methods: UAM and 802.1X (including EAP-SIM and EAP-TTLS and etc). It is capable of supporting customized web UAM pages uploaded locally as well as external web UAM pages residing on external web servers. Furthermore, the concept of Service Zones of WHG515 allows one Controller to manage multiple franchised hotspots simultaneously. In summary, the feature-rich WHG515 supports multiple business models of Internet Access Services - be it for managing wireless or wired clients. It can be configured to fit for private corporations, government agencies, academic campuses, multi-tenant units (MTU), hotels, WISP or telco’s hotspot operations. The 4ipnet WHG-series products aim to offer the best price-performance among all access controllers on nowadays market.

Simplified Deployment and Reliable Internet Connection

Gigabit Ethernet to meet higher data rate demands of larger networks
Easy to deploy, highly scalable platform allows overlay with existing wired/wireless infrastructure without disruption
Load balancing and WAN failover enhance bandwidth utilization and provide more reliable Internet connection

Powerful Network Security Capabilities for Enterprise Applications

Standards-based data encryption: WEP, WPA, WPA2, IEEE 802.1X, and IPSec VPN
Secure guest and administrator access using web-based login and administration over SSL.
Diverse user authentication methods, including built-in Local and On-demand database; supports external authentication servers including POP3, LDAP, RADIUS, Windows Domain, and SIP registrar
Built-in DoS protection keeps malicious hackers from collapsing the network
Site-to-site VPN tunnels allow branch offices to securely connect with one another and share the same account database.
Centralized certificate management function with built-in root CA feature to issue self-signed certificates for internal network security validation.

Comprehensive Access Control and User Management

Role-based access control and policy enforcement offer management of privileges for different user groups.
On-demand account generation provides secure and managed user accounts to visitors.
Service Zone function partitions a physical network into up to 9 virtual networks, each with its own definable access control and group policy profiles. Allows hotspot owners to provide various levels of customized services.
Individual user bandwidth limit enables flexible traffic control for different scenarios.

Centralized Access Point (AP) Management

Centralized remote control and automatic AP discovery.
Management and monitoring of managed APs via web-based administration interface, including AP’s system settings, online status, enabling/disabling, reset, and firmware upgrade.
Periodically monitors APs and notifies the administrator of problematic APs.
Tunneled AP management to support overlay deployment across different IP subnets.
Supports management of 3rd party AP devices with graphical statistics.

Flexible Accounting and Easy Billing

Configurable billing profiles allow operators to customize billing plans for on-demand users.
Support online payment with credit card through Authorize.net, PayPal, SecurePay, and WorldPay.

Support for Location-Based Hotspot Services and Customizable UAM Web Pages

The logical concept of Service Zone allows the Controller to differentiate clients by locations and to provide different user experiences (such as different login pages) and network policies.
When coupling with VLAN switches and DSLAM devices, the Controller can use its Port Mapping feature to tell the location of each client and therefore provide differentiated services. For example, a hotel guest would not need to type in the password again every time when accessing the Internet in room.
By setting up multiple Service Zones and utilizing customized pages or external pages, a single Controller can serve multiple hotspot franchises transparently to the clients.
Seamless L2/L3 roaming.

PMS Integration for Hotel Applications

A hotel guest can obtain an Internet access account at check-in counter, or sign up for the Internet access service in room anytime without the help of clerks. With PMS integration, the guest will receive a single room bill.
With a single account, a guest will be able to access the Internet by wire in room or by wireless connection anywhere within the service range of APs connecting to the Controller.

Networking

Support NAT or Router mode
Support Static IP, DHCP, PPPoE mode on WAN interfaces and PPTP (WAN 1 only)
Choose freely which LAN is authentication-enabled LAN
Support NAT:

IP/Port destination redirection
DMZ server mapping
Virtual server mapping
H.323 pass-through

Supports email service via designated email server
Built-in with DHCP Server and support DHCP relay
Support walled garden (free surfing zone)
Walled Garden Ad List that enables advertisement website links on user login portal page
Support MAC-address and IP-address pass-through
Support HTTP Proxy
Support IP Plug and Play (IP PnP)
Support configurable static routes
Support dual uplinks, outbound load balancing and failover for more reliable Internet connection
Support SIP pass-through NAT
Support Ethernet connection to external terminal servers
Port location mapping features for working with DSLAM and VLAN switches
Dynamic Routing Protocol: RIP, OSPF, IS-IS
Seamless L2/L3 roaming

System Administration

Support web-based management user interface
Provide customizable login and logout portal page
SSH remote management
Remote firmware upgrade
NTP time synchronization
Menu driven console management interface
Utilities to backup and restore the system configuration
built-in root CA feature to issue self-signed certificates for internal network security validation

Monitoring and Reporting

Status monitoring of on-line users
IP-based monitoring of network devices
Uplink (WAN) connection failure alert
Support Syslog for diagnosis and troubleshooting
User traffic history logging
Traffic history report via email to administrator
Users’ session log can be sent to FTP or Syslog server
Graphical system report

User Management and Access Control

Support 10,000 local accounts and 10,000 on-demand accounts
Provide on-demand accounts for visitors
Support Local user account roaming
Authentication methods supported: Local and On-demand accounts, POP3, LDAP, RADIUS, Windows Domain, and SIP authentication
Single-Sign-On for Windows Domain
Allow MAC address and user identity binding for local user authentication
Support MAC Access Control List
Support auto-expired guest accounts
Users can be divided into user groups, each user group has its own network properties, including bandwidth, QoS, accessible service zones, and other privileges
Support QoS and WMM traffic types: Voice, Video, Best Effort and Background
Each group (role) may get different network policies in different service zones
Max concurrent user session (TCP/UDP) limit
A setting for user-idle-timeout
Configurable user Black List
Export/Import local users list to/from a text file

Security

Support local IPSec VPN tunnels
Support PPTP VPN tunnels
Support site-to-site VPN tunnels
Support VPN pass-through (IPSec and PPTP)
Built-in DoS attack protection

Service Zones

The network is divided into maximum 9 Service Zones, each defined by a pair of VLAN tag and ESSID
Each service zone has its own:

login portal page
authentication options
LAN interface IP address
DHCP address range

Each service zone allows access to the selected groups
Each service zone assigns a network policy to each user group
WISPr support per service zone

Accounting and Billing

Support local on-demand and external RADIUS server
Contain 10 configurable billing plans for on-demand accounts
Support credit card billing system by Authorize.net, PayPal, SecurePay, and WorldPay
Provide session expiration control for on-demand accounts
Provide detailed per-user network traffic history for both local and on-demand user accounts
4ipnet RADIUS VSA implementation for volume-based session control using RADIUS server
Support automatic e-mail to report network traffic history
Support middleware connection to Property Management System (PMS)

AP Management

Manage up to 250 x 4ipnet AP in both Local and Wide Areas AP management totally
Monitor 3rd party non-integrated AP: up to 250
Centralized remote management via HTTP/SNMP interface
Auto discovery for managed APs
Enable or disable APs easily via user interface
Templates for managed APs
Monitoring managed AP for its status, the number of associated clients, and RF information
Upgrade managed APs centrally, including bulk upgrade
Rogue AP detection and AP load balancing
Tunneled AP management over internet for 4ipnet EAP110, EAP200, EAP300 Aps
Graphical AP statistics display

Hardware Specifications

WAN Ports: 2 x 10/100/1000 BASE-T RJ-45
LAN Ports: 4 x 10/100/1000 BASE-T RJ-45
Management Port: 1 x 10/100 BASE-T RJ-45
Console Port: 1 x RJ-45
LED Indicators: 1 x Power, 1 x Link Status, 5 x Ethernet Connect
LCD Display

Physical and Power

Power: 100~240 VAC, 50/60 Hz
Form Factor: 19” 1U Rack Mount
Dimensions (W x D x H): 17" x 10.9" x1.7" (431 mm x 276 mm x 44.4 mm)
Weight: 15.4 lbs (7 kg))

Environment

Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 65 °C
Operation Humidity: 5% ~ 95% (Non-condensing)
Storage Humidity: 5% ~ 95% (Non-condensing)

Certifications

CE, FCC
RoHS compliant
