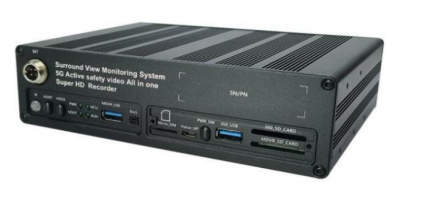

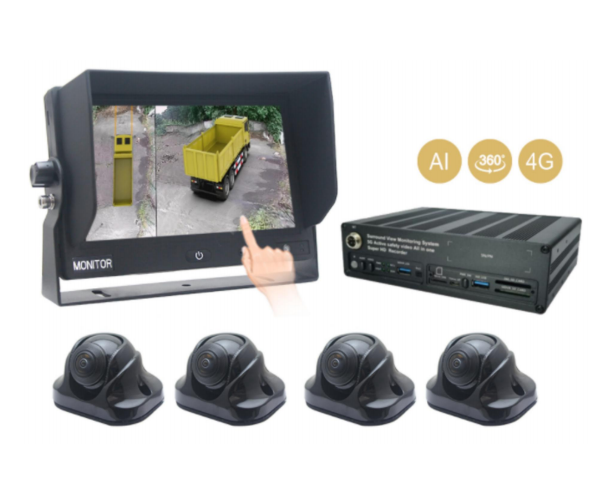

1. Designed specifically for trucks, buses, and special vehicles, this 360-degree panoramic imaging system
features proprietary stitching algorithms, high integration, and a wide temperature range, operating from -20 to
70¡ãC.
2. The system features built-in AI algorithms for 360-degree blind spot detection. It alerts drivers through the
cabin monitor (visual)+blind spot (BSD_LED) indicator lights (light)+ intelligent voice broadcast (audible),
providing a comprehensive (3 in 1) warning system. Additionally, it connects to external audio-visual alarm to
warn pedestrians or non-motor vehicles entering the blind spot, enhancing overall driving safety.
3. The system complies with the ISO-7637 standard and meets automotive power supply specifications, featuring
a wide voltage design of DC 10-33V, surge protection, reverse polarity protection, low voltage protection, and
short circuit overload protection.
4. Supports multiple video outputs, including CVBS/HDMI/VGA/AHD.
5. Supports CAN communication, high-speed CAN bus transceiver, compliant with ISO 11898 standards, with low
power management and network wake-up functionality.
6. Two storage options, supports SD card storage (8G-256G)
and 2.5-inch HDD or SSD storage via SATA interface (128G-2TB).
7. Monitors of different sizes and audio-visual alarm are optional.
8. Detect approaching vehicles (but only front car distance)
9. Detect pedestrians and workers entering danger zones
10. Trigger audible and visual alerts inside the cabin
11. Send live operational data to a control room
12. Record incidents for insurance claims and compliances
13. Track GPS location, vehicle speed, and harsh braking events
14. 360¡ã AI cameras (front, rear and side coverage)
15. AI video analytics for people and vehicle detection
16. In-cab display with real-time alerts
