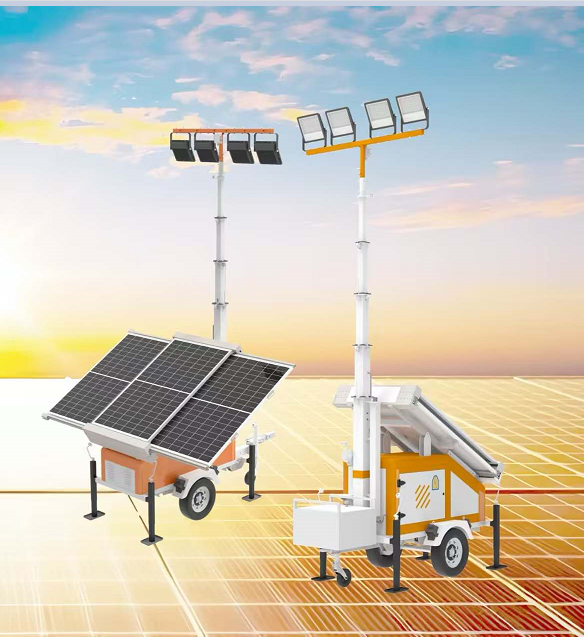

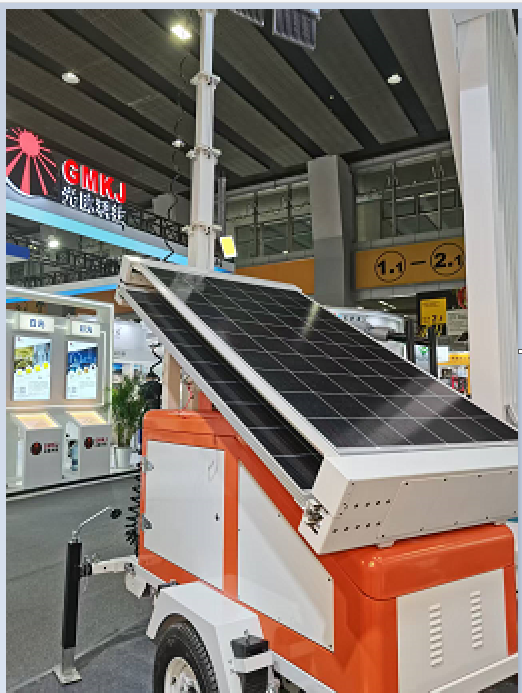

Solar mobile light tower, charging time: 8 hours; Lighting
time: 24 hours; System voltage: DC24V, protection level: IP65,
movement mode: traction/vehicle mounted, body material:
steel plate, surface treated with anti-corrosion; Appearance
color: white black;
1. Power generation section: 3 * 370W monocrystalline silicon
solar panels with a conversion efficiency of 22.33%;
2. Battery part: Lead acid gel battery, 4 * 200AH 12V 9600W.
h;
3. Control section: MPPT 2 * 40A maximum load 2 * 300W;
Mast lifting method: manual lifting 5m
4, Lighting section: 4 * 150Wmax, 4 * 24000lm max, IP66;
5. Dragging speed: 40KM/H; Trailer hook: 50mm Ball/70mm
Ring;
6. Trailer standard: European standard;
7. Equipment packaging size: 2060 * 1150 * 2400mm,
equipment working size: 2890 * 2860 * 7800mm, weight:
1200KG; 40HQ cabinet can hold 12 units.
8. Warranty: 2 years
