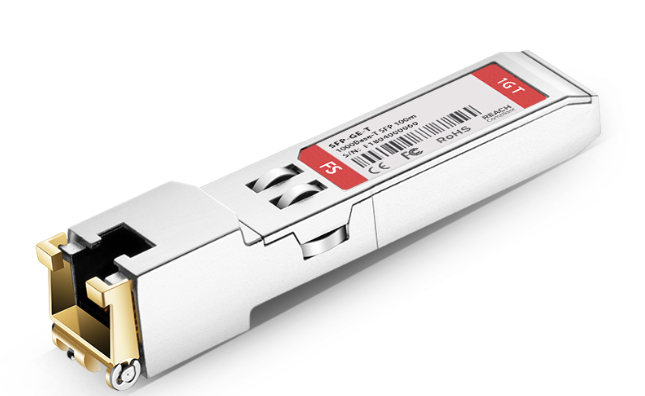

Customized 1000BASE-T SFP Copper 100m RJ-45 Transceiver Module

Specifications

Part Number

SFP-GE-T

Vendor Name

FS

Form Factor

SFP

Max. Data Rate

1000Mbps

Max Cable Distance

100m

Media

Cat 5e/6/6a

Connector

RJ-45

Power Consumption

<1W

DDM/DOM

Not Supported

EMC (Electro Magnetic Compatibility)

Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Industrial Temperature Range

-40 to 85°C (-40 to 185°F)

Bit Error Ratio (BER)

1E-12

MTBF

1,000,000 Hours

Protocols

IEEE Std 802.3 and 802.3ab, SFP MSA Compliant

Warranty

5 Years
